Underfloor Heating Film

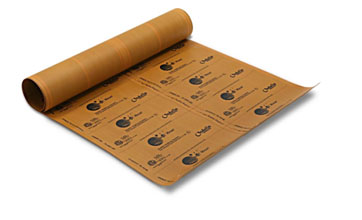

carbon underfloor heating film
| Specipication | ||
|---|---|---|
| Model Name | OPF220-M1 | OPF110-M1,OPF110-M2 |
| Rated Voltage | 205~240V | 110~120V |
| Rated Amp. | 0.958~1.120A /M± 10% | 1.917~2.090A/M± 10% |
| Power output | 230W /M± 10% | 230W /M±10% |
- Size : 1m(50cm*2)*100m/1roll.
- Materials : PET, PET nonwoven Fabric, Carbon, Adhesive, Copper Bars
- Features : 45mm (1/60”) thickens, which is thin and durable. Can be us to install with 110v or 220v. Available with extra non-woven fabric on the exterior side for installation to tile,
- Temperature : Below 60 ℃
- Usage : Underfloor heating, such as under Carpet, wood, vinyl floor covering, tents and Towel Driers.
- A. wiring diagram for Model no. OPF220-M1, OPF110-M1
- B. wiring diagram for Model no. OPF110-M2
- Warranty
The Ondolia Heat Film system standard warranty is 2 years and 1year for thermostat from the date of purpose. Extended Warranty can be purchased for the Underfloor heating film only, by completing the "EXTENDED WARRANTY FORM" from within 30 days of purchase. [Extended warranty period will vary from models.]
